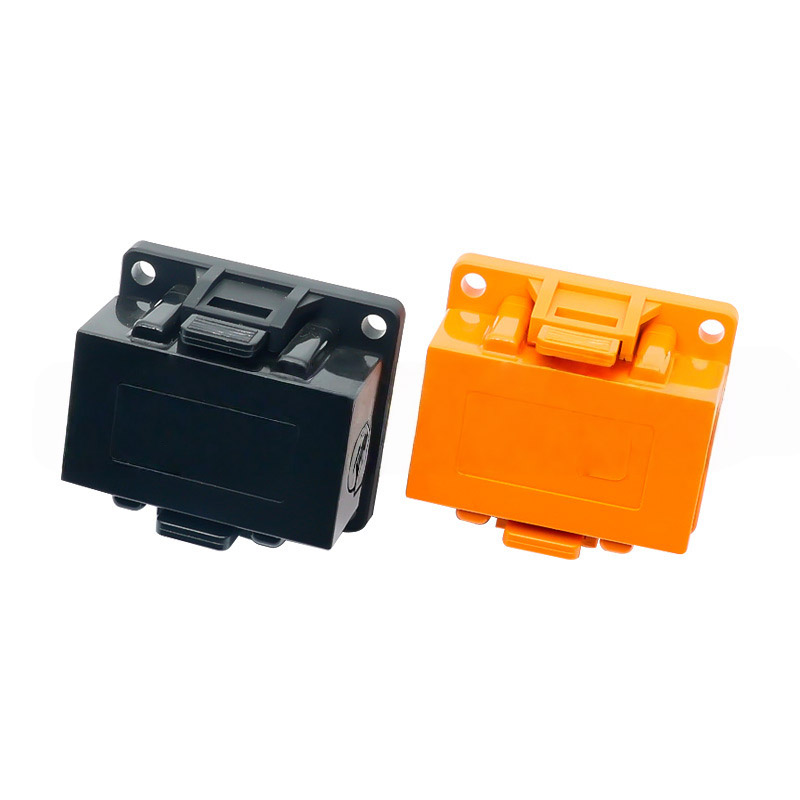

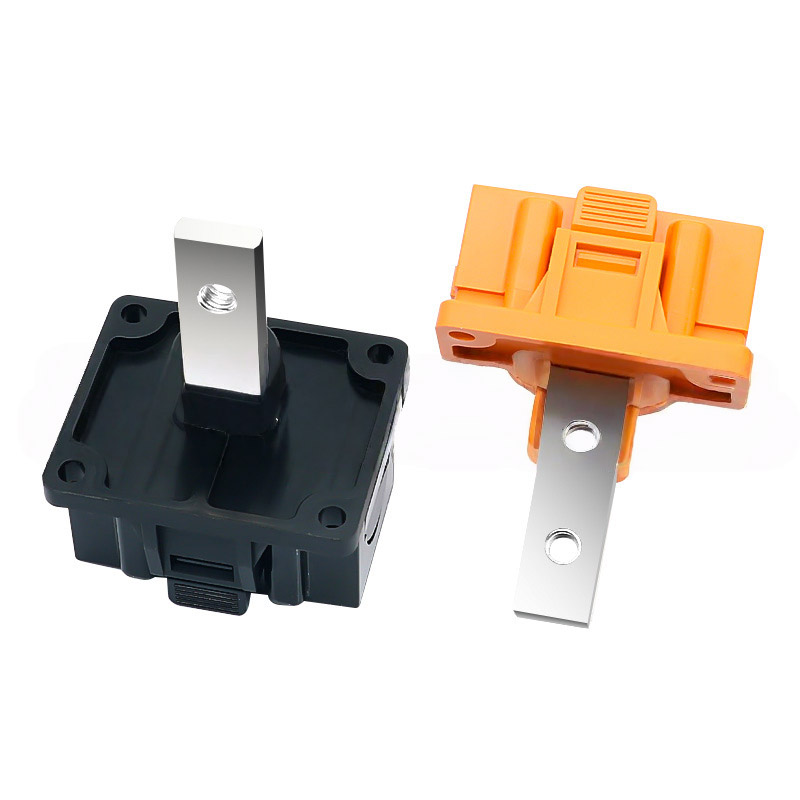

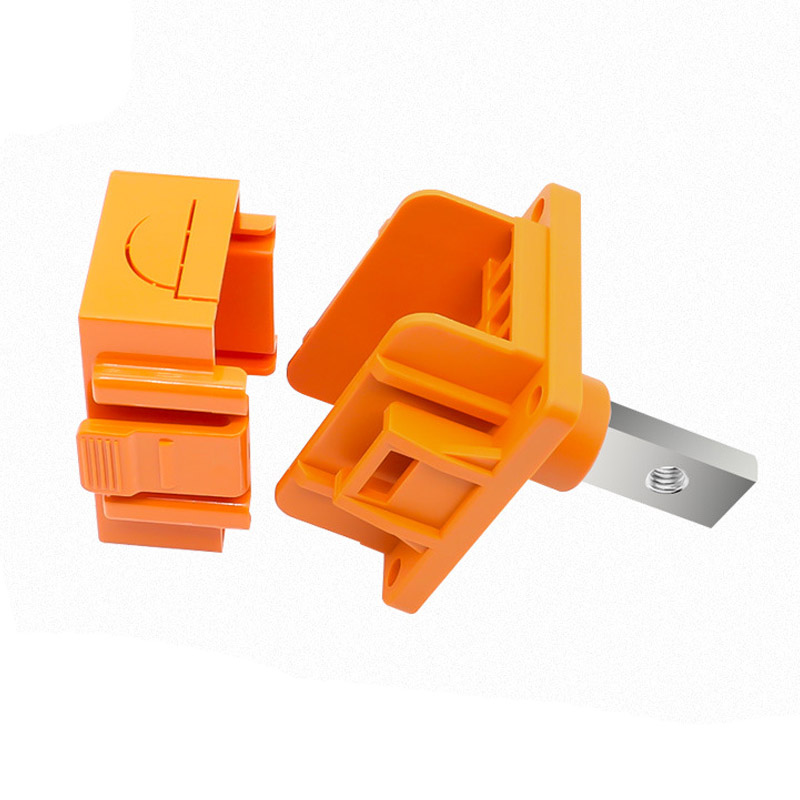

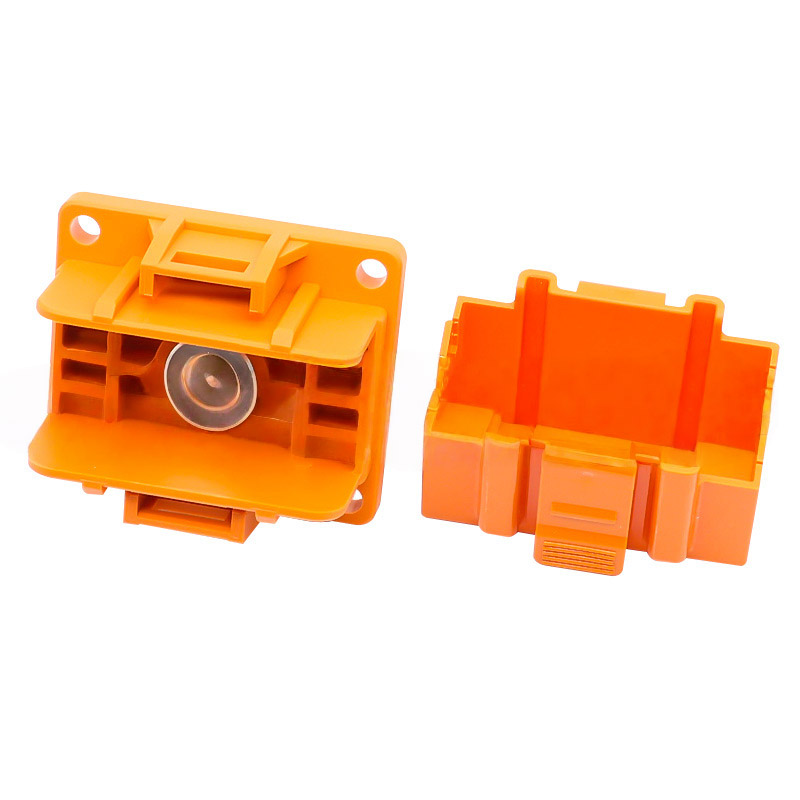

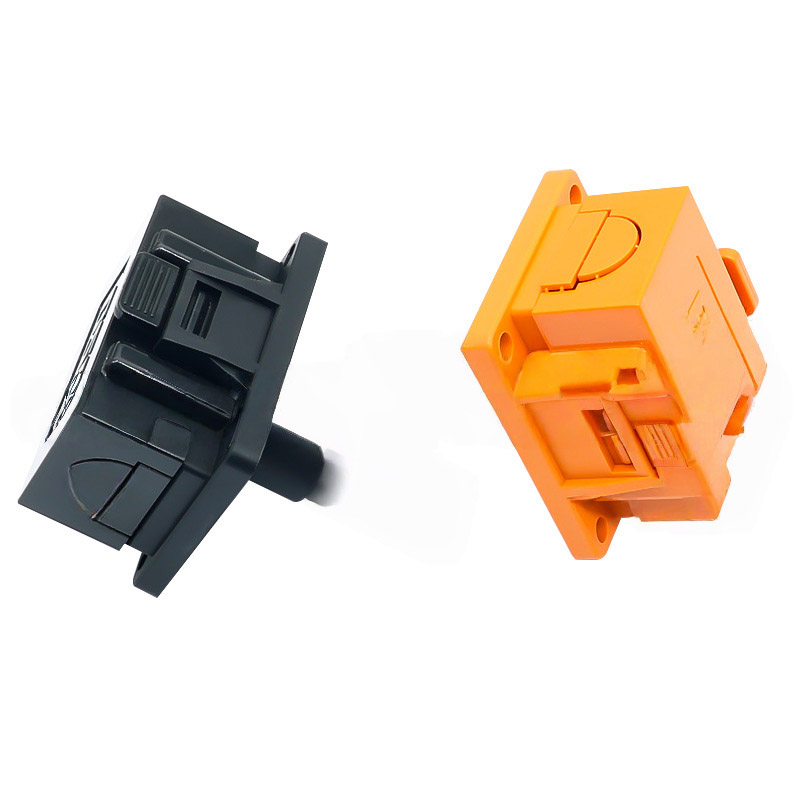

LY6159Type A copper busbar connector, high-current high-power terminal post, copper terminal for new energy high-voltage connections

Plastic housing: PA66-GF flame： retardant UL94 V-0
Terminal material: copper alloy, silver-plated
Insertion and removal cycles: 100 times
Rated current: 100A
Rated voltage: DC 500V
Insulation withstand voltage: AC 2500V
Insulation resistance: ≥200MΩ
Contact resistance: <0.5mΩ
Temperature rise: <40K
Operating temperature: -40℃~+125℃
Salt spray: 96 hours
Protection rating: IPXXB
Certification: EN61984 (TUV)
