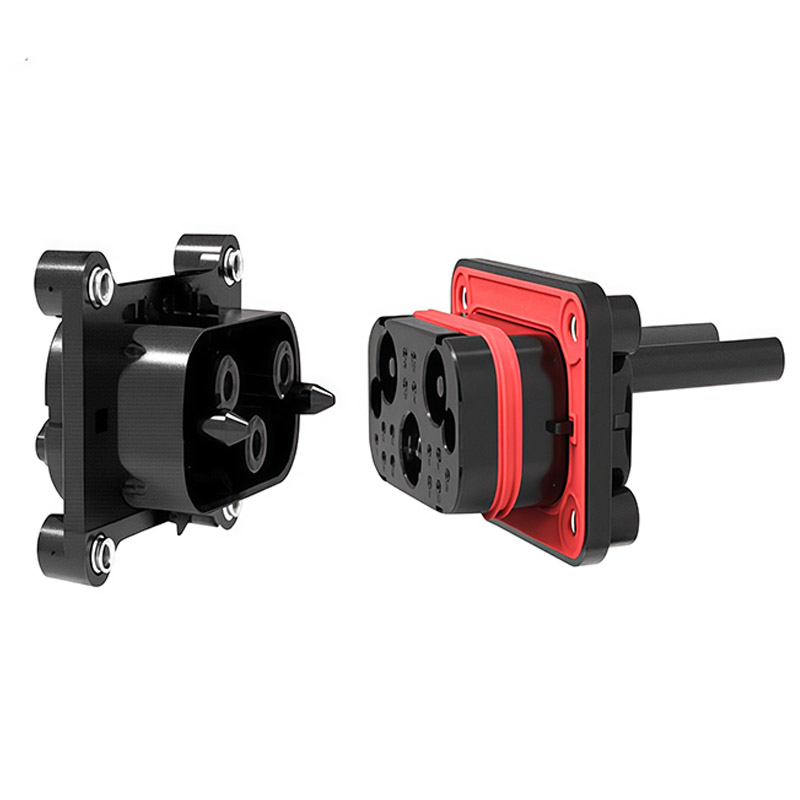

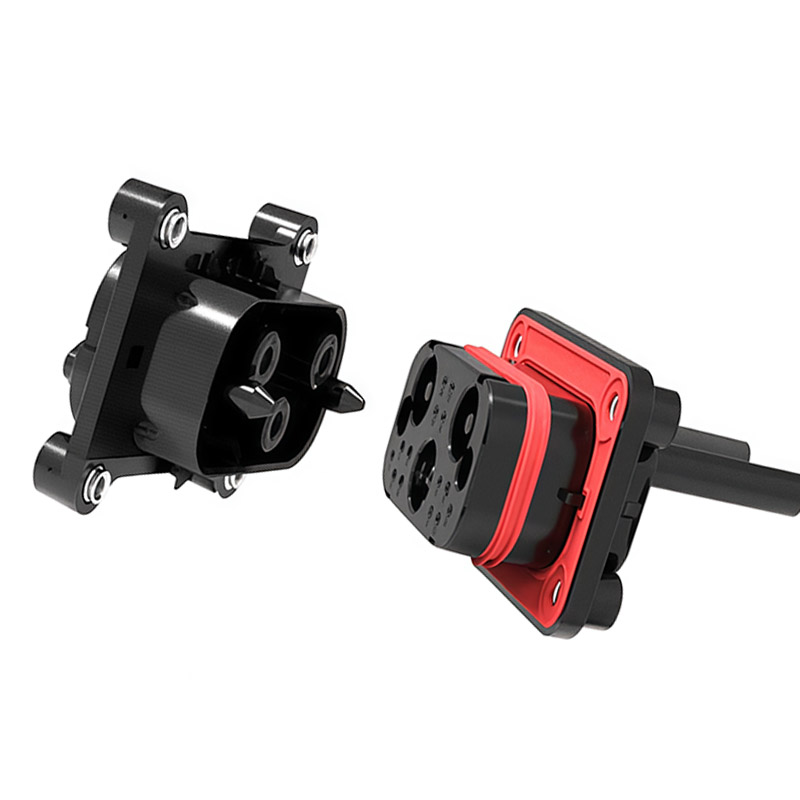

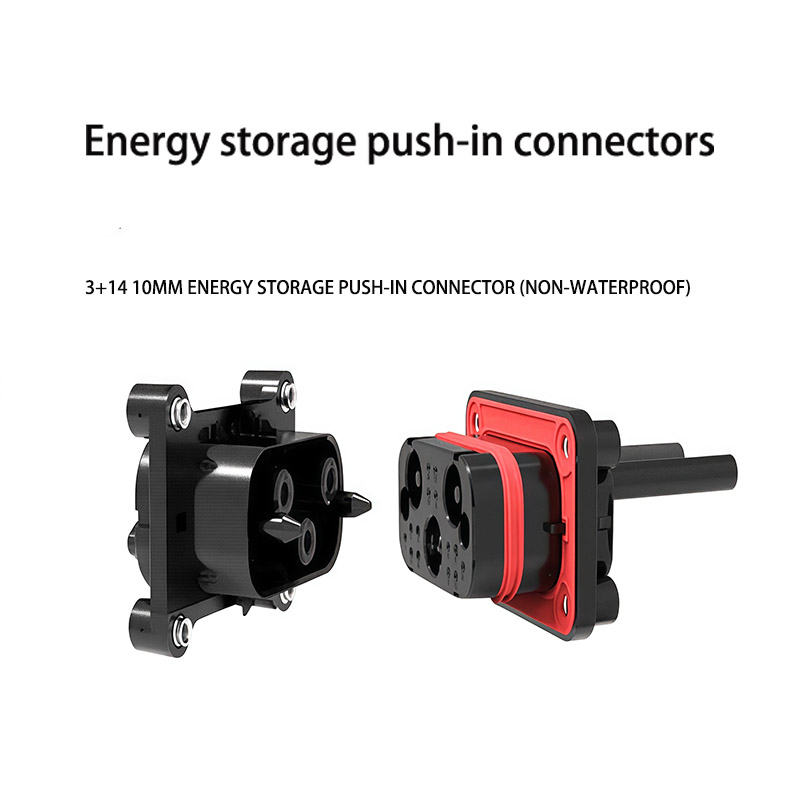

LY61583+14 Energy Storage Quick-Connect Plug 64A Lithium Battery Connector High-Current Home Energy Storage Power Exchange Male-Female Socket

Plastic housing: PA66-GF flame retardant UL94 V-0
Terminal material: copper alloy, silver-plated
Insertion and removal cycles: 100 times
Rated current: 100A
Rated voltage: DC 500V
Insulation withstand voltage: AC 2500V
Insulation resistance: ≥200MΩ
Contact resistance: <0.5mΩ
Temperature rise: <40K
Operating temperature: -40°C to +125°C
Salt spray: 96 hours
Protection rating: IPXXB
Certification: EN61984 (TUV)
