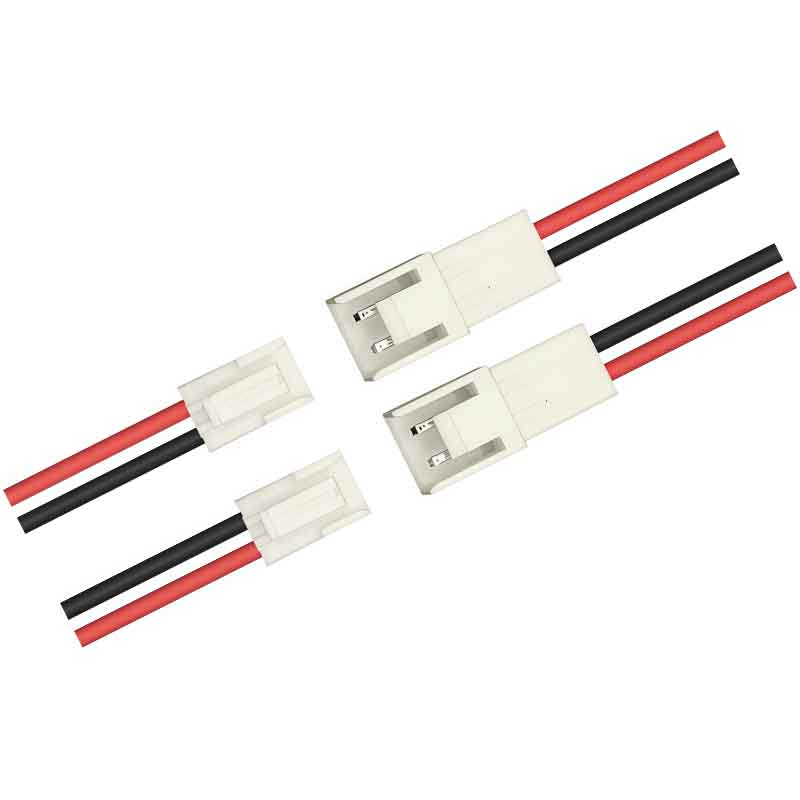

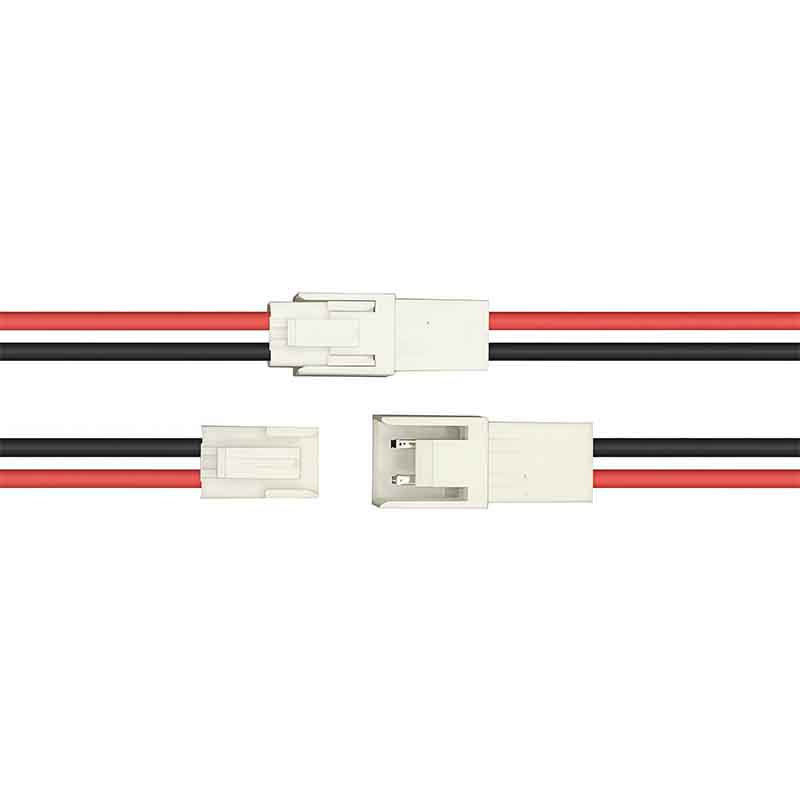

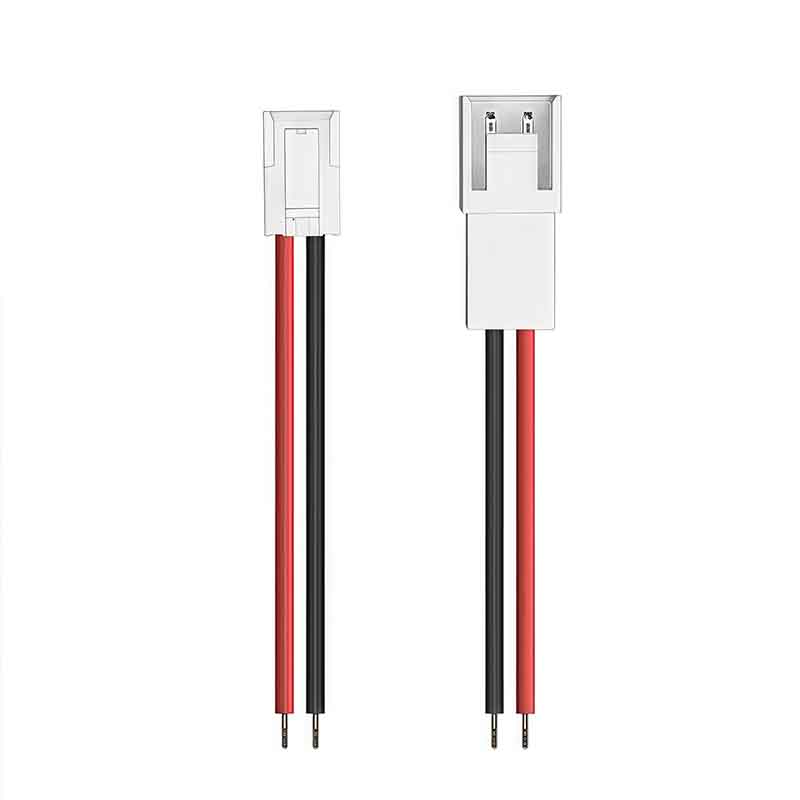

LY8292 VH3.96 connector fascia gun connecting wires motor wires PH XH SM terminal wires flag-type terminal wires
Pitch: 3.96mm standard for high-density wiring, fits PCB board-to-wire.
Material: Phosphor bronze terminals, cold-crimped; nylon/PVC insulation (-25℃~85℃), moisture-proof & anti-interference.
Specs: 250-300V, 3-12.5A (by gauge), ≤0.02Ω contact resistance, ≥1000MΩ insulation, UL certified.
Apps: LED power, TV wiring, home appliance control boards (AC, washer), industrial automation (sensors, industrial PCs) for power/signal transmission.
Material: Phosphor bronze terminals, cold-crimped; nylon/PVC insulation (-25℃~85℃), moisture-proof & anti-interference.
Specs: 250-300V, 3-12.5A (by gauge), ≤0.02Ω contact resistance, ≥1000MΩ insulation, UL certified.
Apps: LED power, TV wiring, home appliance control boards (AC, washer), industrial automation (sensors, industrial PCs) for power/signal transmission.
Type: Harness/Connecting Wire/Terminal Wire
Operating Frequency: Low Frequency
Application Scope: LED
Interface Type: AC/DC
Shape: Striped
Wire Length: 100 (mm)
Manufacturing Process: Cold Pressing
Customization: Yes
Characteristics: Fire-Resistant/Flame-Retardant
Insulator Material: PVC
Core Count: 7
Pin Count: 2
Application Field: Lighting Electronics

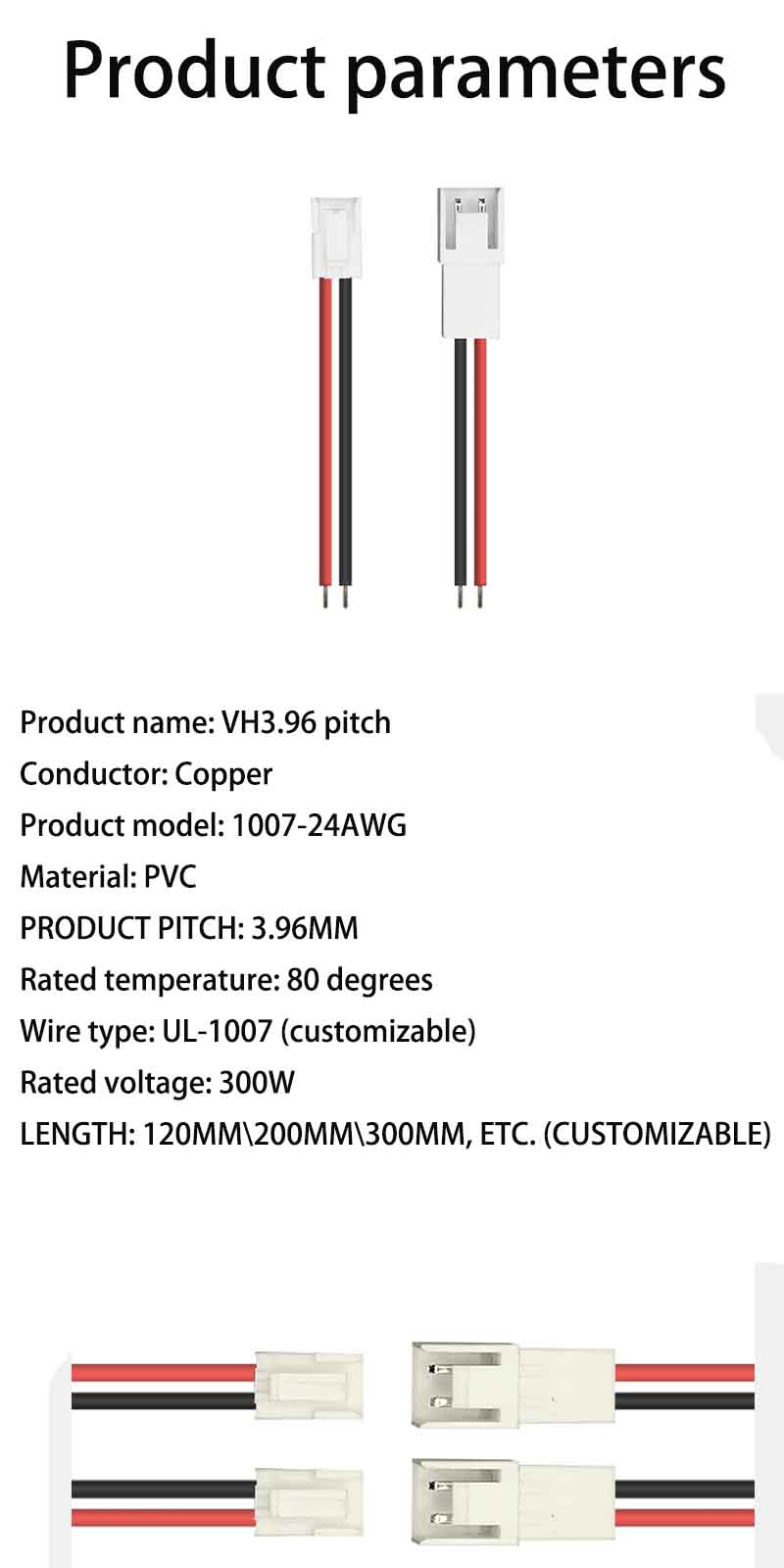

Specifications: vh3.96-2P, 100mm
Cold-Pressed Terminal Wires: Cold-Pressed Terminal Wires
Connector Wires: Connector Wires
Application Scenarios: Drones, Model Airplanes, Toy Cars, Food Processors, Juicers, Floor Cleaning Robots, Radios, Bluetooth Headsets, Electric Blankets, Hair Dryers
