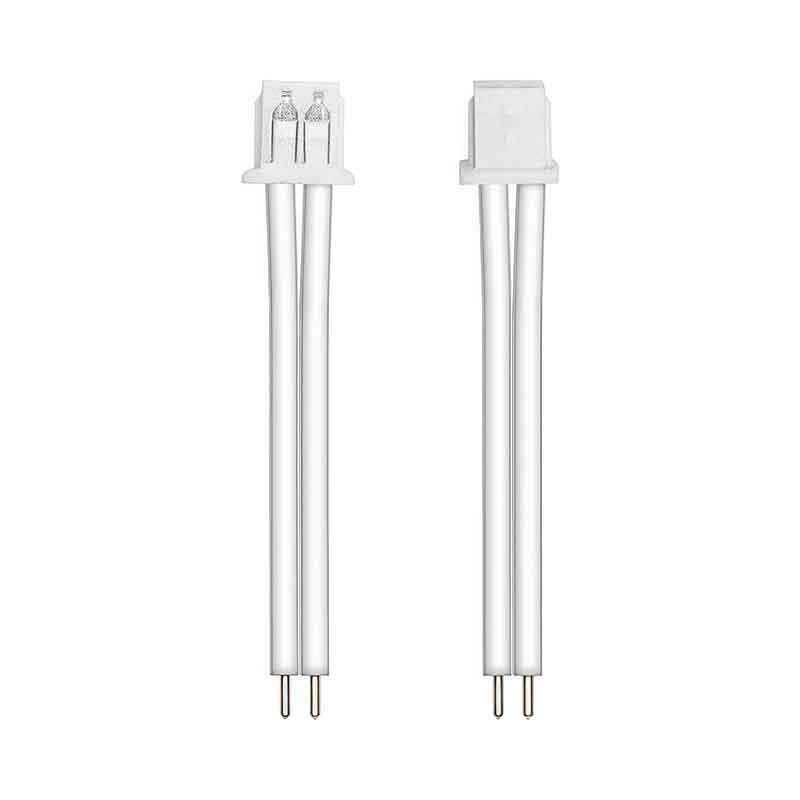

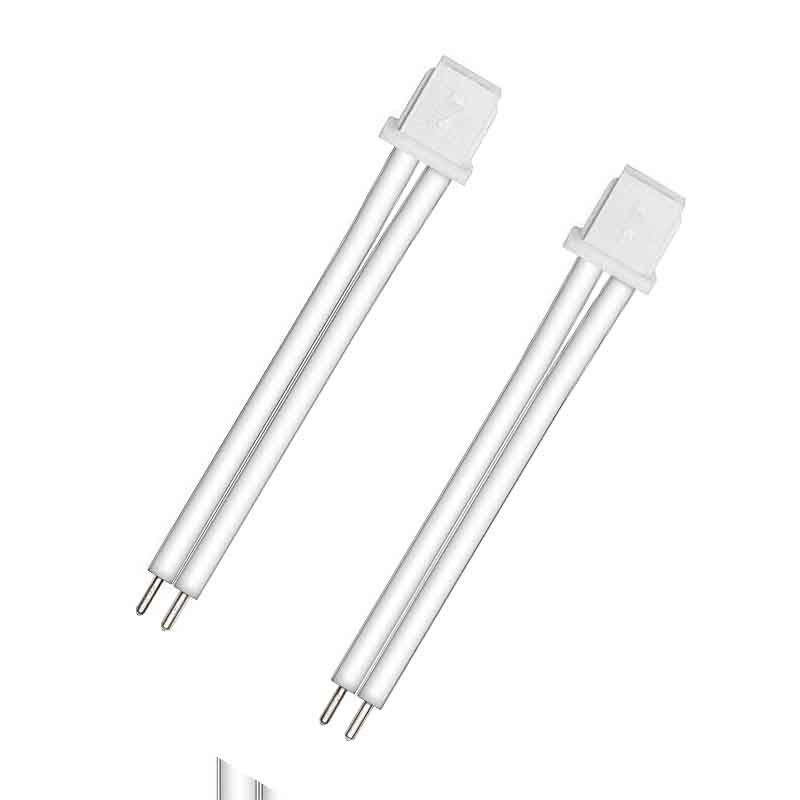

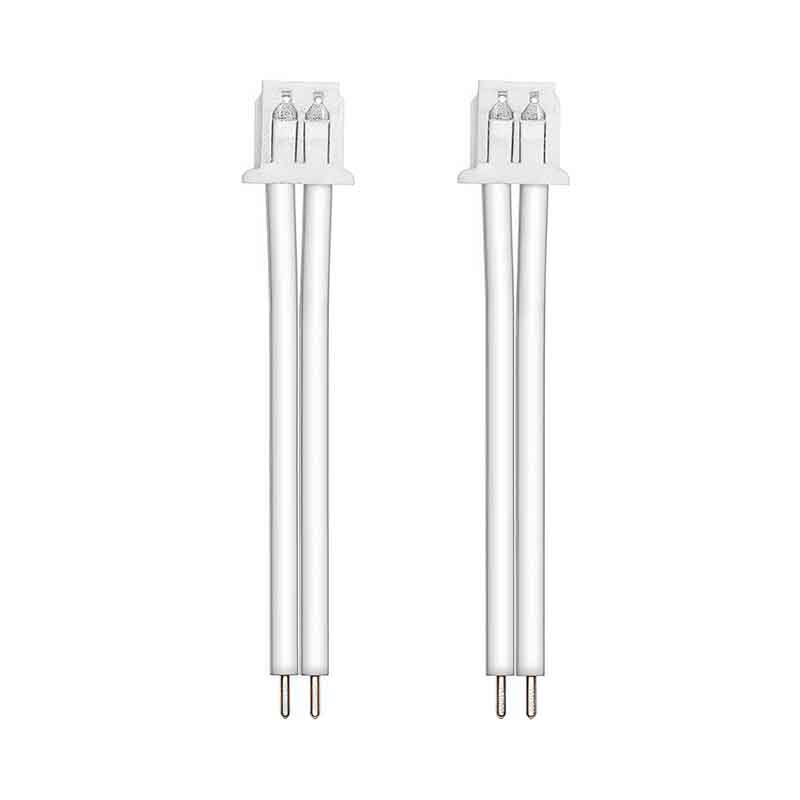

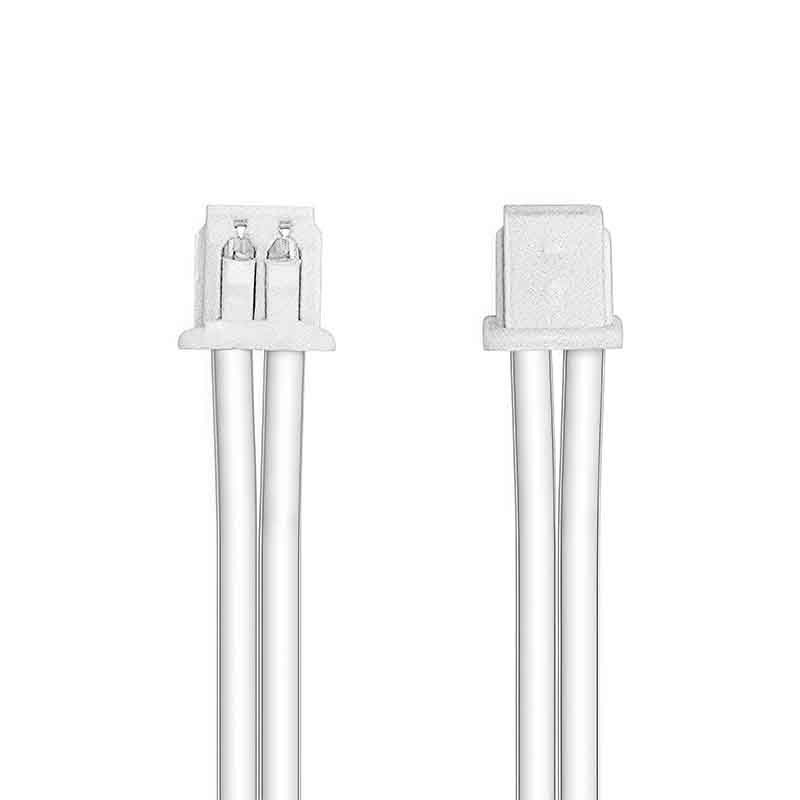

LY8307 1.25-2P white terminal parallel-wires 1.0/1.25/1.5/2.0/2.54/3.96mm pitch male-female connector terminal wires
1.25mm terminal wires: 1.25mm high-density connection, supports AWG28#-32# wires, integrated plug/socket.
High stability: tinned copper terminals (≤0.02Ω), nylon/PVC insulation (-25℃~105℃, ≥1000MΩ).
Compatible with 2P-20P housings, customizable length/interface.
Withstands 500-1500V, passes salt spray/bending tests, RoHS compliant.
For consumer electronics, home appliances, automotive sensors, industrial automation, efficient power/signal transmission.
High stability: tinned copper terminals (≤0.02Ω), nylon/PVC insulation (-25℃~105℃, ≥1000MΩ).
Compatible with 2P-20P housings, customizable length/interface.
Withstands 500-1500V, passes salt spray/bending tests, RoHS compliant.
For consumer electronics, home appliances, automotive sensors, industrial automation, efficient power/signal transmission.
Rated Voltage: 30V
Operating Temperature: 80℃
Application Field: 3C Digital
Product Certification: UL
Product Series: 1.25-2P
Core Count: 7
Terminal Wires: Terminal Wires/Terminal Harnesses/Terminal Blocks
