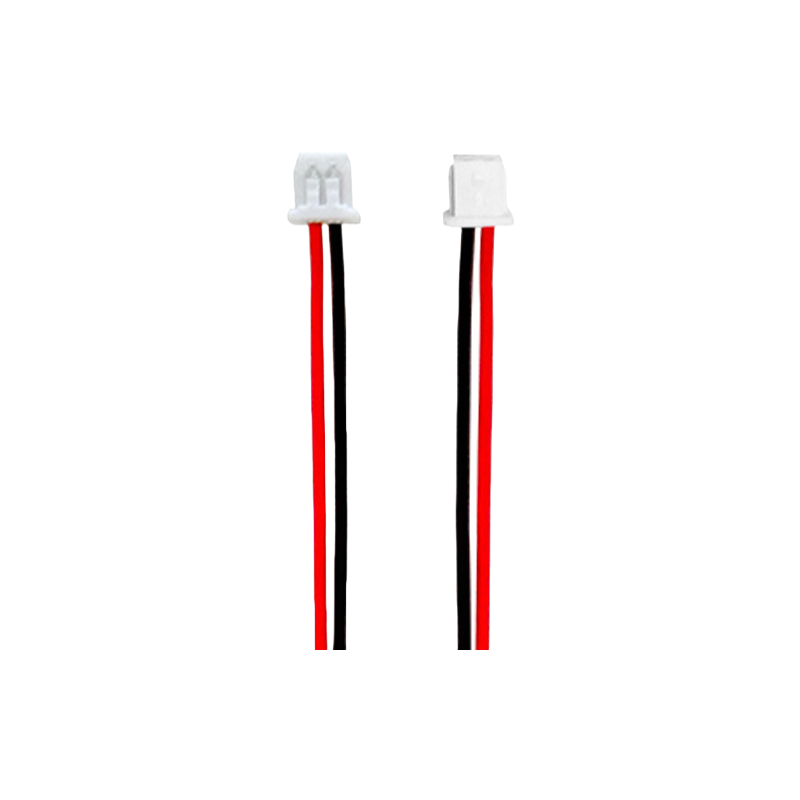

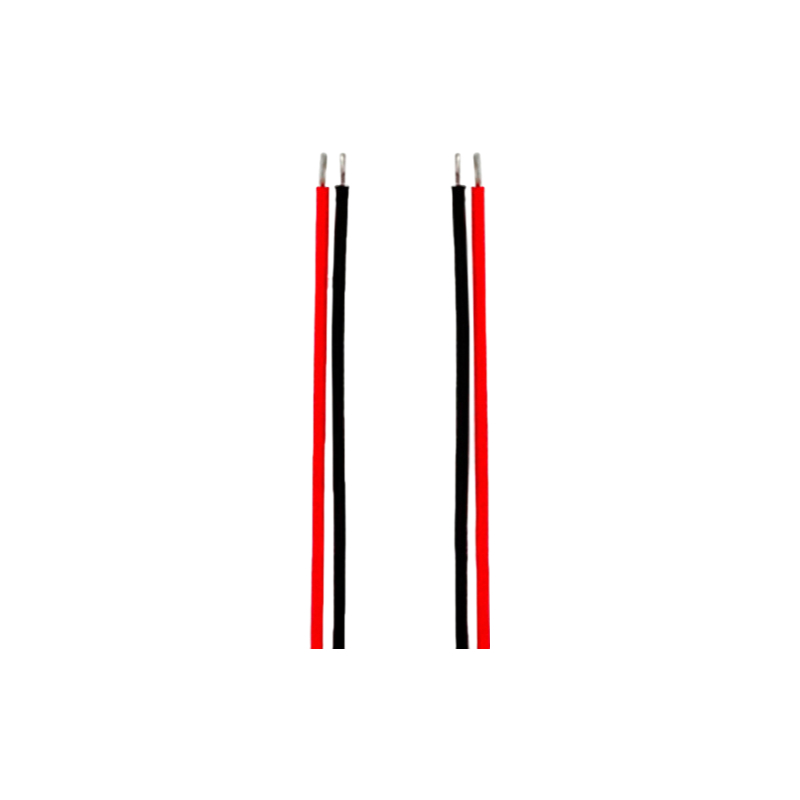

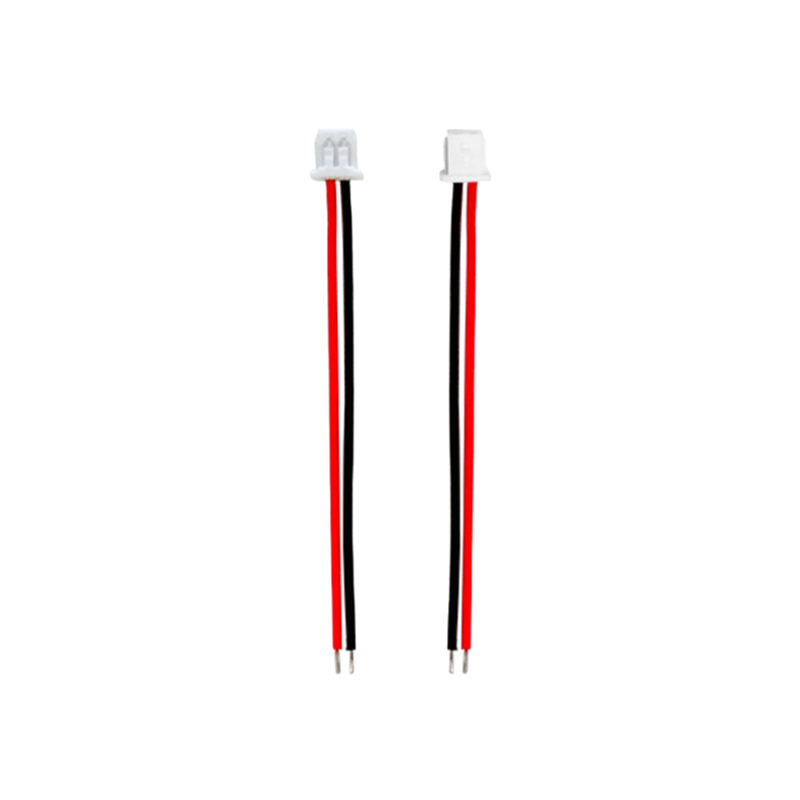

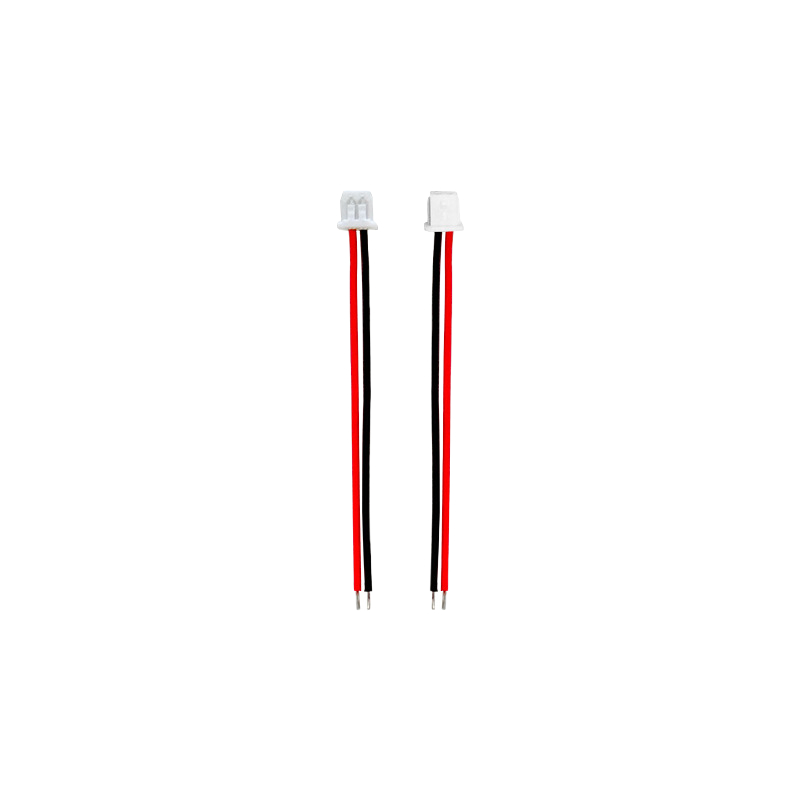

LY8300 1.25mm Terminal Wires 2-pin Single-ended Red-Black 1571 30AWG Night Light DVR Recorder Lithium Battery Connection Wires Processing
1.25mm terminal wires: 1.25mm high-density connection, supports AWG28#-32# wires, integrated plug/socket.
High stability: tinned copper terminals (≤0.02Ω), nylon/PVC insulation (-25℃~105℃, ≥1000MΩ).
Compatible with 2P-20P housings, customizable length/interface.
Withstands 500-1500V, passes salt spray/bending tests, RoHS compliant.
For consumer electronics, home appliances, automotive sensors, industrial automation, efficient power/signal transmission.
High stability: tinned copper terminals (≤0.02Ω), nylon/PVC insulation (-25℃~105℃, ≥1000MΩ).
Compatible with 2P-20P housings, customizable length/interface.
Withstands 500-1500V, passes salt spray/bending tests, RoHS compliant.
For consumer electronics, home appliances, automotive sensors, industrial automation, efficient power/signal transmission.

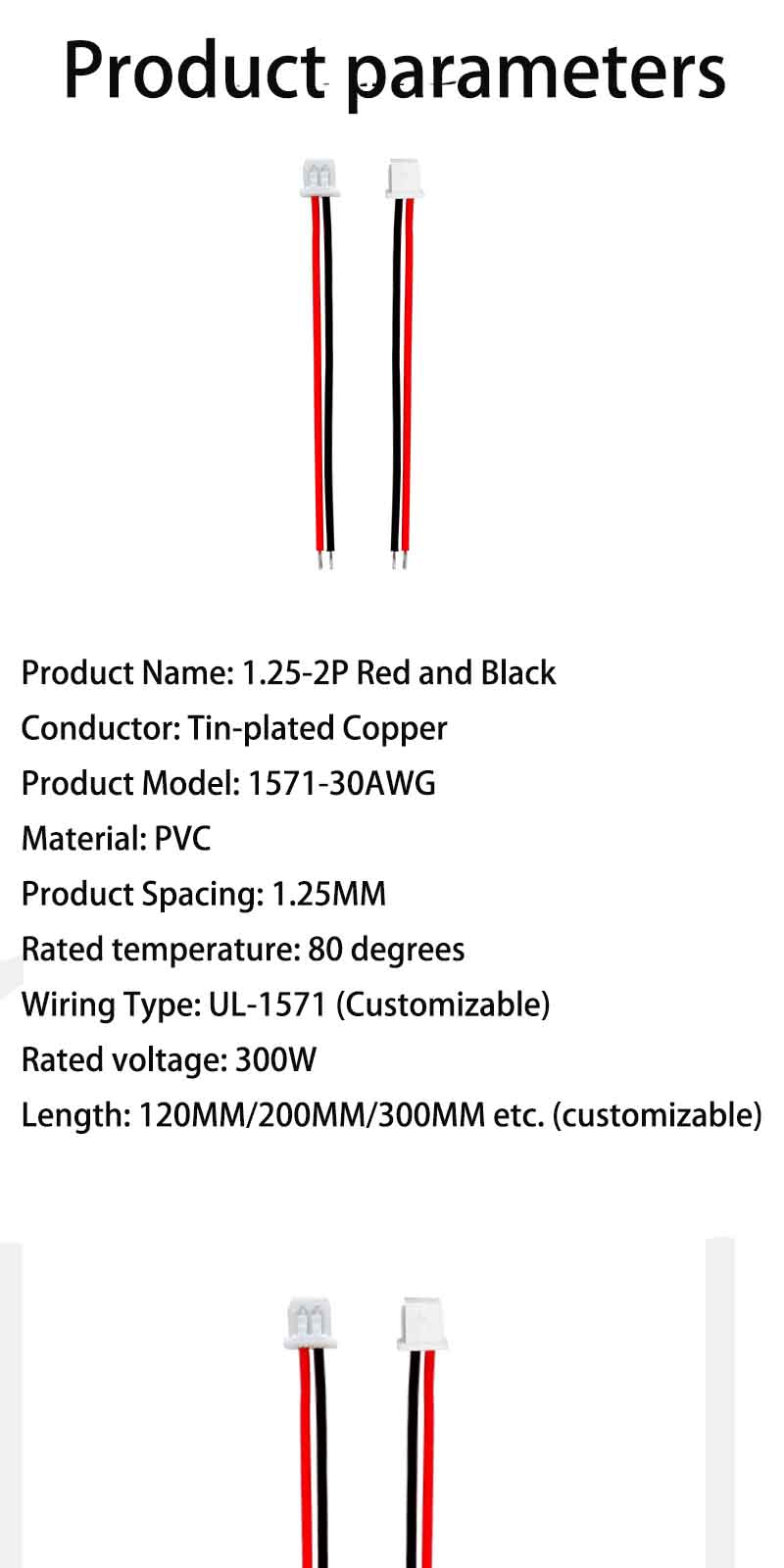

Type: Harness/Connecting Wire/Terminal Wire
Operating Frequency: Low Frequency
Application Scope: Lithium Batteries
Interface Type: AC/DC
Shape: Striped
Wire Length: 50 (mm)
Manufacturing Process: Cold Pressing
Customization: Yes
Characteristics: Fire-Resistant/Flame-Retardant
Insulator Material: PVC
Pin Count: 2
