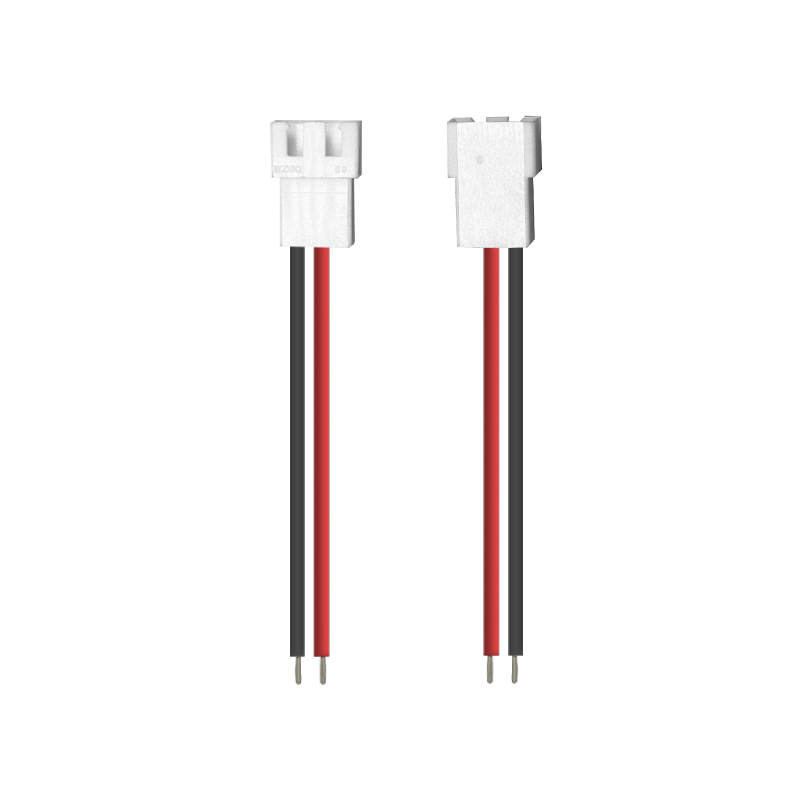

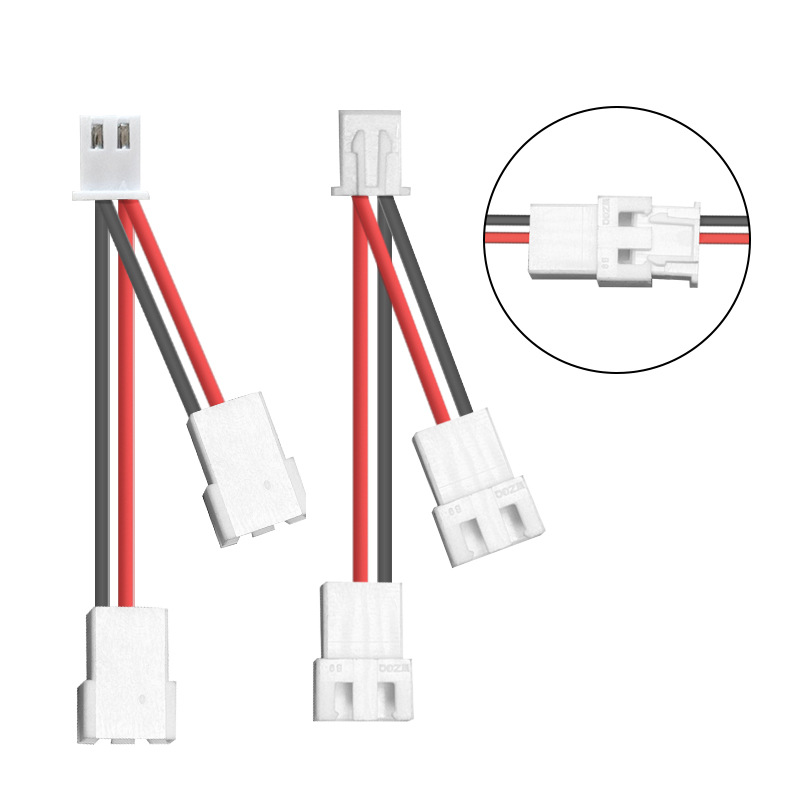

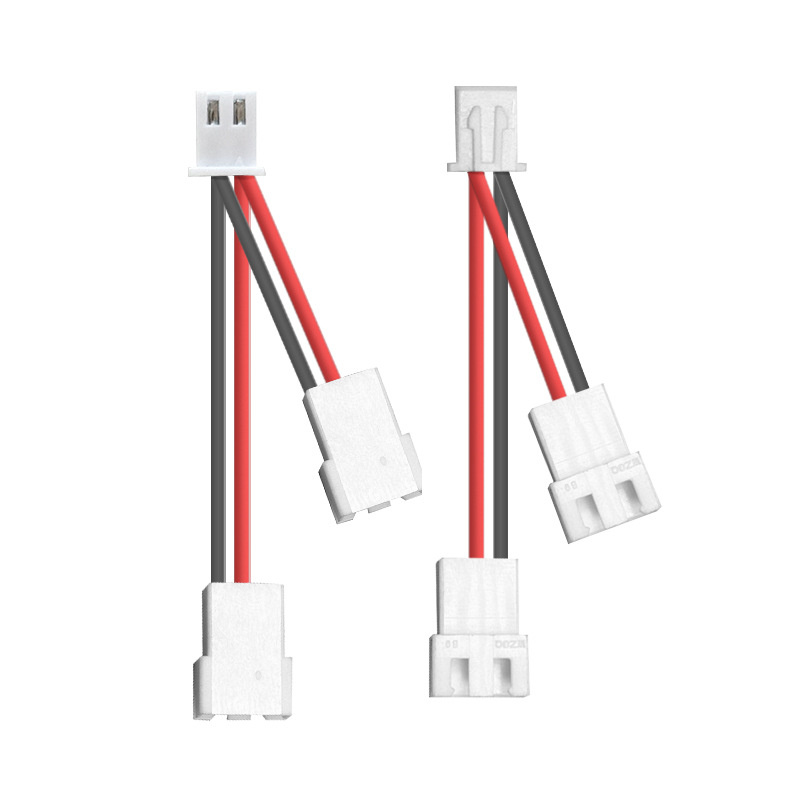

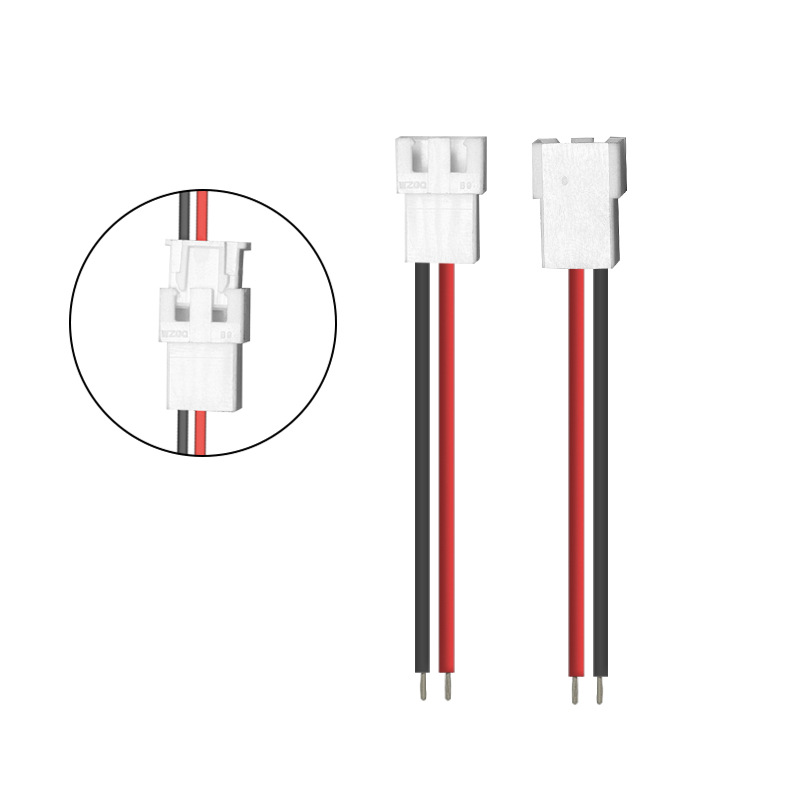

LY8341 XH Terminal Wires - 1P/2P/3P/4P 2.54mm Pitch Terminal Wires with Red-Black Electronic Wires for Electrical Circuit Connections
XH terminal wire harnesses adopt a standard 2.54mm pitch design, precision-crimped with phosphor bronze tinned terminals and eco-friendly PVC wires, featuring excellent electrical conductivity, high-temperature resistance, and corrosion resistance. Their compact structure saves space and ensures easy plugging/unplugging, widely used in home appliances, computer motherboards, industrial control, and automotive electronics to ensure stable signal transmission and highly reliable connections.
Manufacturing Process: Cold Pressing
Contact Material: PVC
Application Field: Household Appliances
Flame Retardant Grade: 80℃
Product Series: XH2.54 Black-Red Terminal Wire
Function: Conductive Transmission, Signal Transmission, Low Voltage

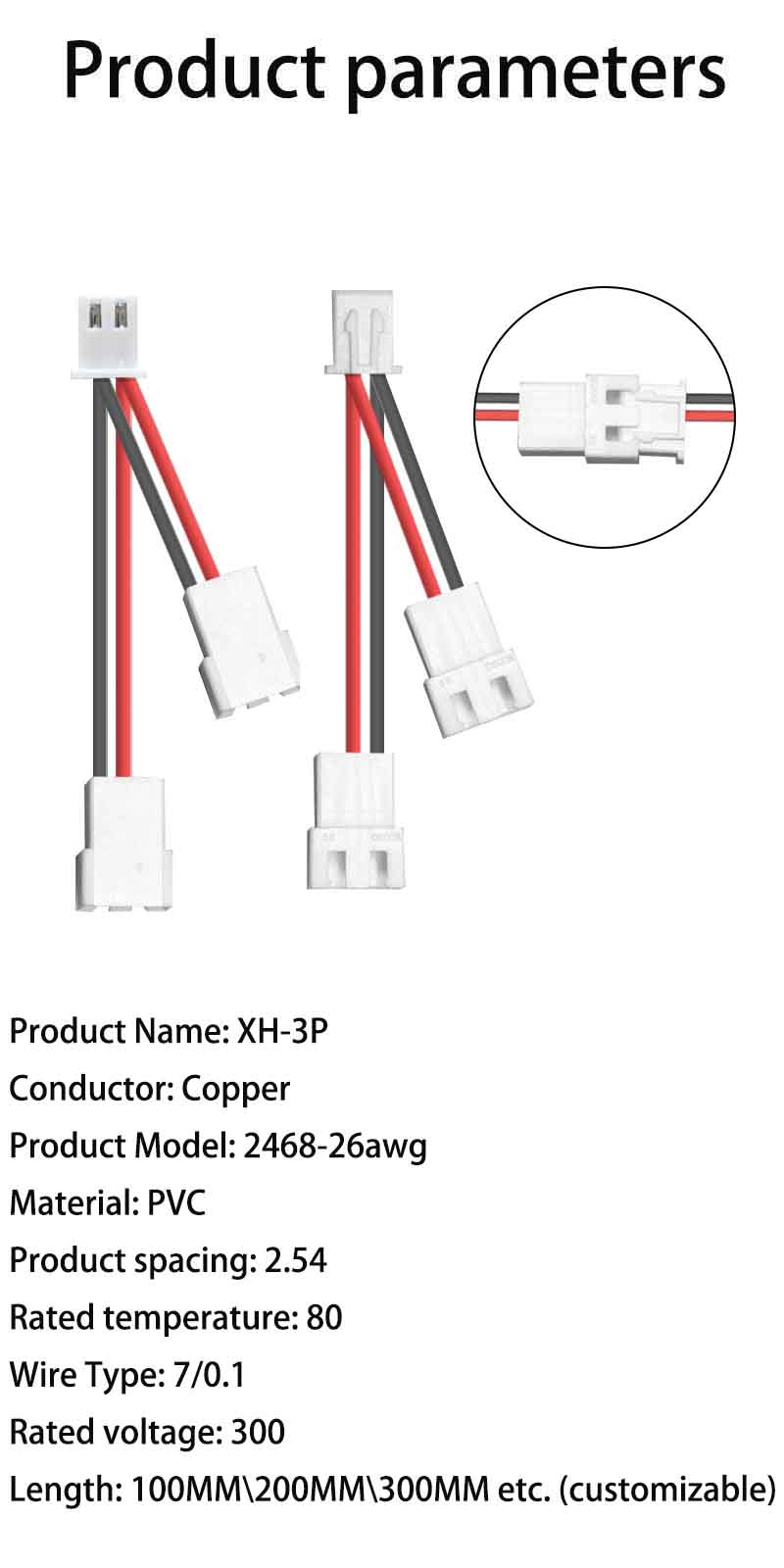

Product Name: XH-3P
Conductor: Copper
Product Model: 2468-26AWG
Material: PVC
Product Pitch: 2.54mm
Rated Temperature: 80℃
Wire Gauge: 7/0.1mm
Rated Voltage: 300V
Length: 100MM/200MM/300MM, etc. (Customizable)
