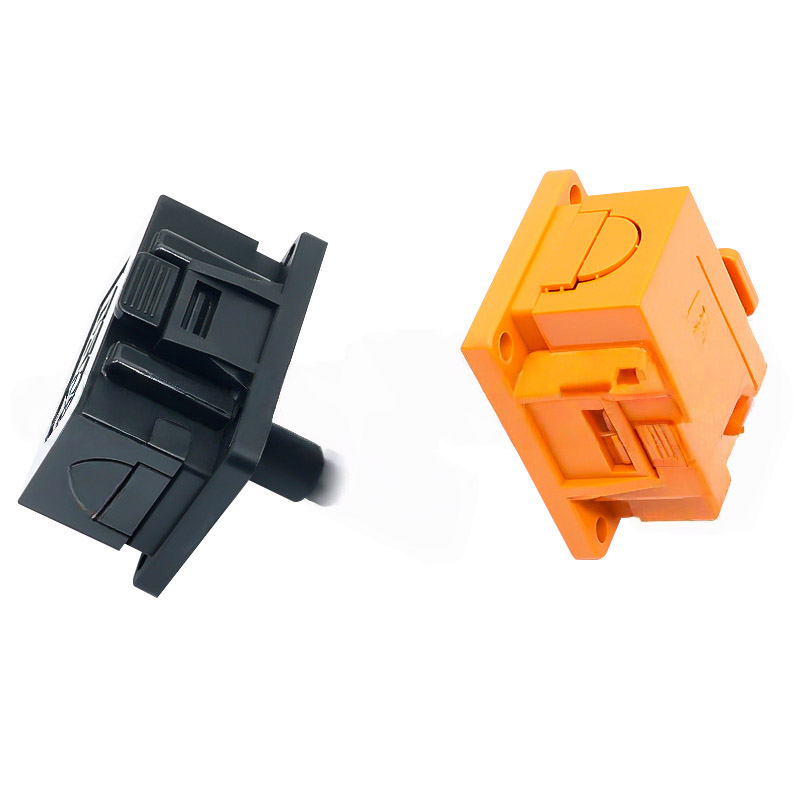

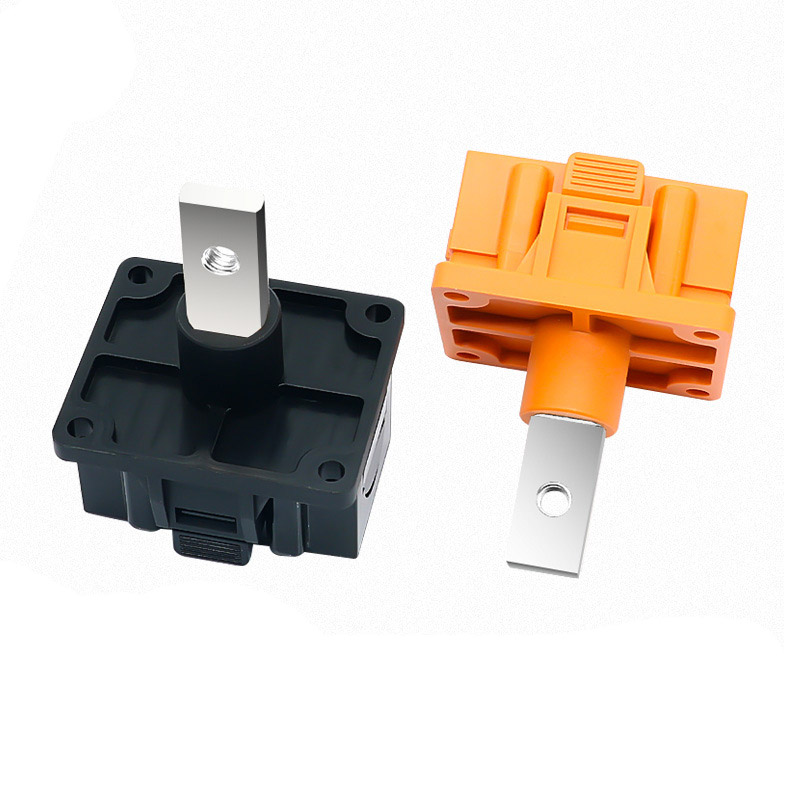

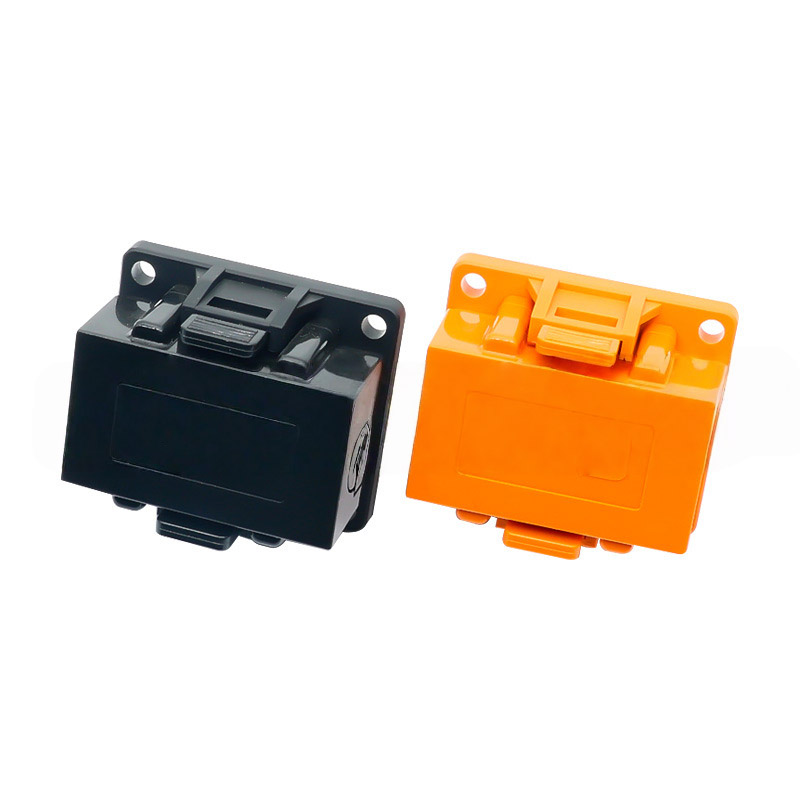

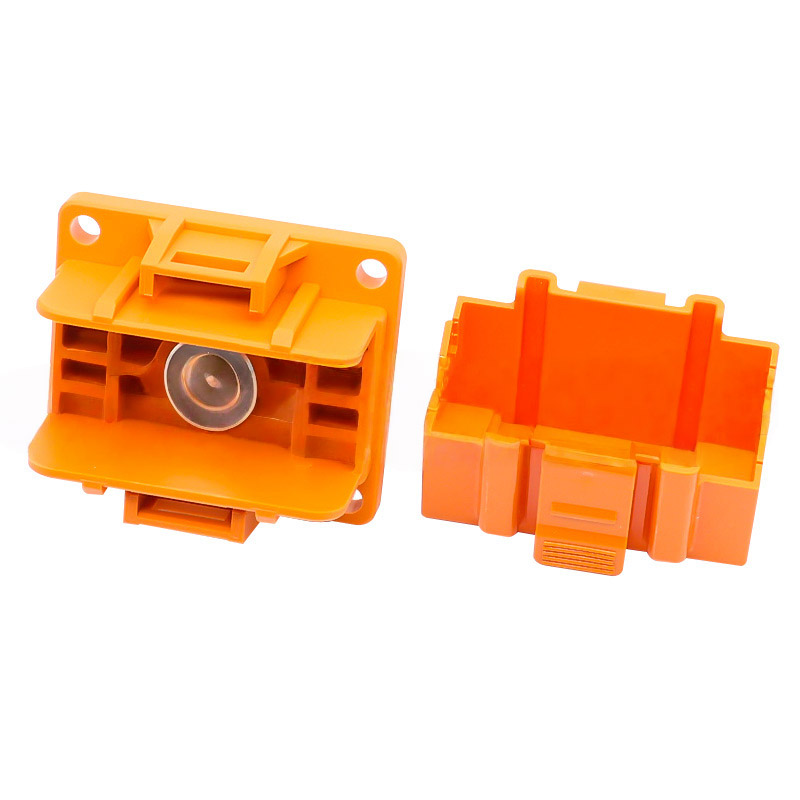

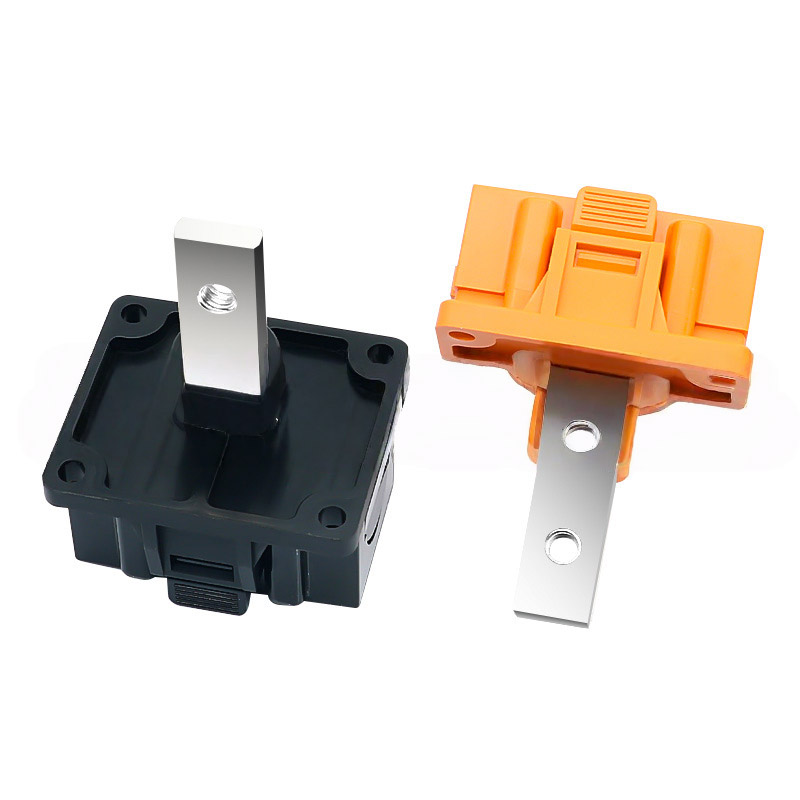

LY6160150A 250A 350A energy storage connector linkage power supply plug connector lithium battery connection terminal

Return to List >>

Consultation cooperation >>

Plastic housing: PA66-GF flame retardant UL94 V-0
Terminal material: copper alloy, silver-plated
Insertion and removal cycles: 100 times
Rated current: 100A
Rated voltage: DC 500V
Insulation withstand voltage: AC 2500V
Insulation resistance: ≥200MΩ
Contact resistance: <0.5mΩ
Temperature rise: <40K
Operating temperature: -40℃~+125℃
Salt spray: 96 hours
Protection rating: IPXXB
