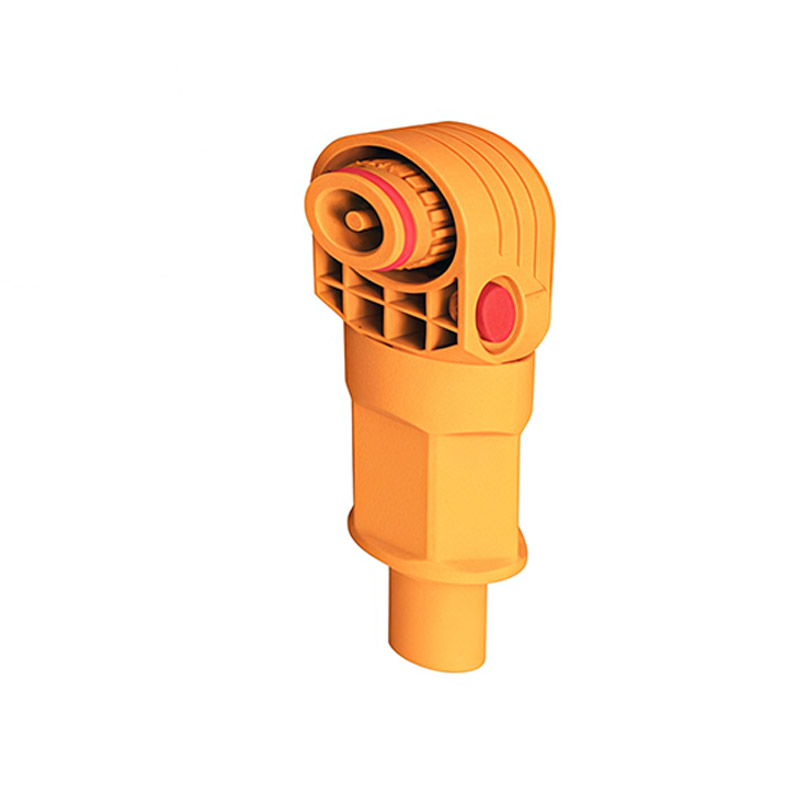

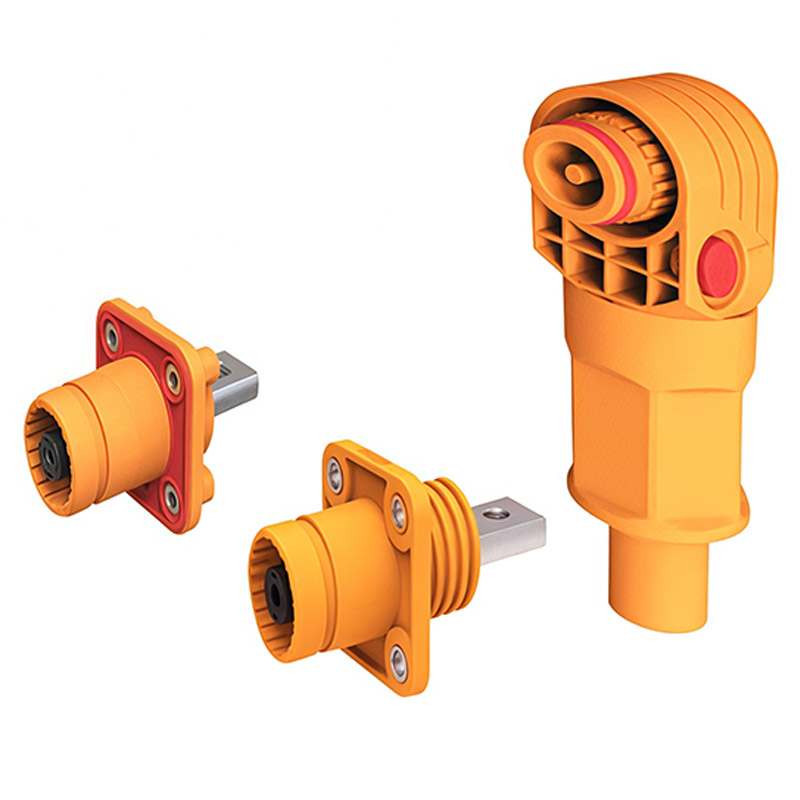

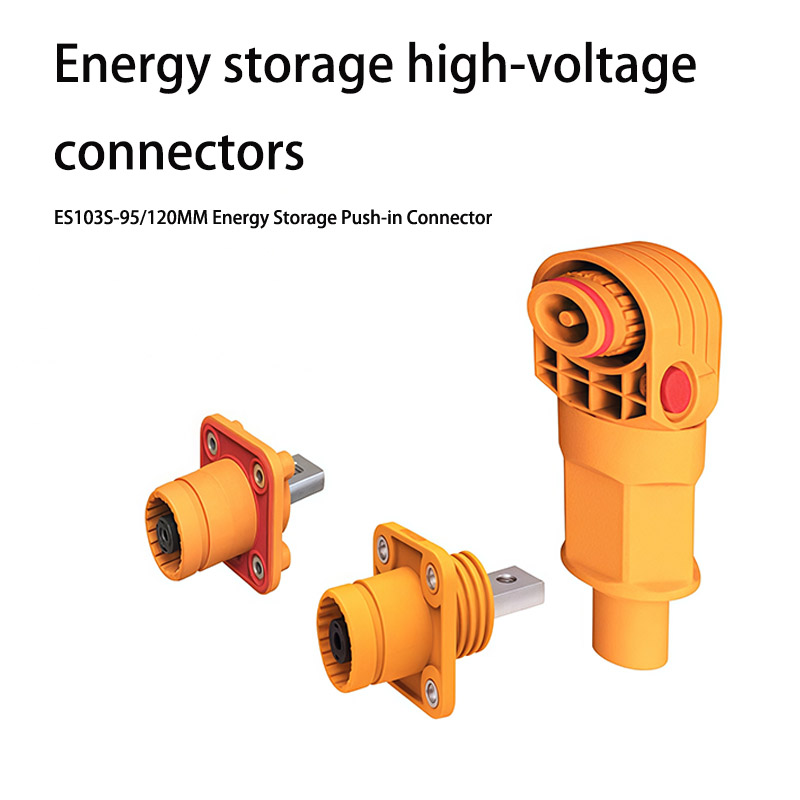

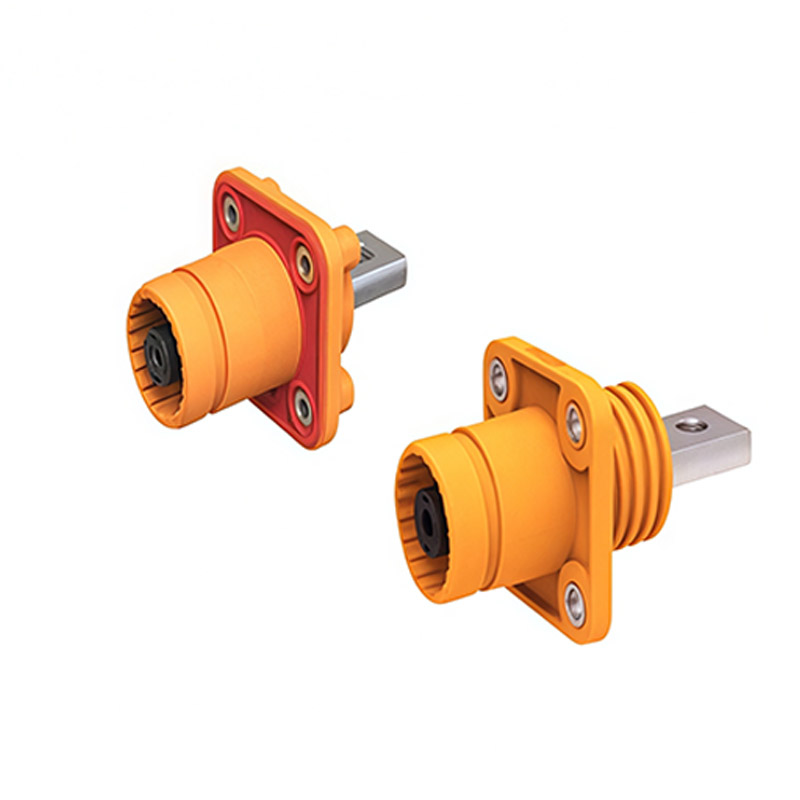

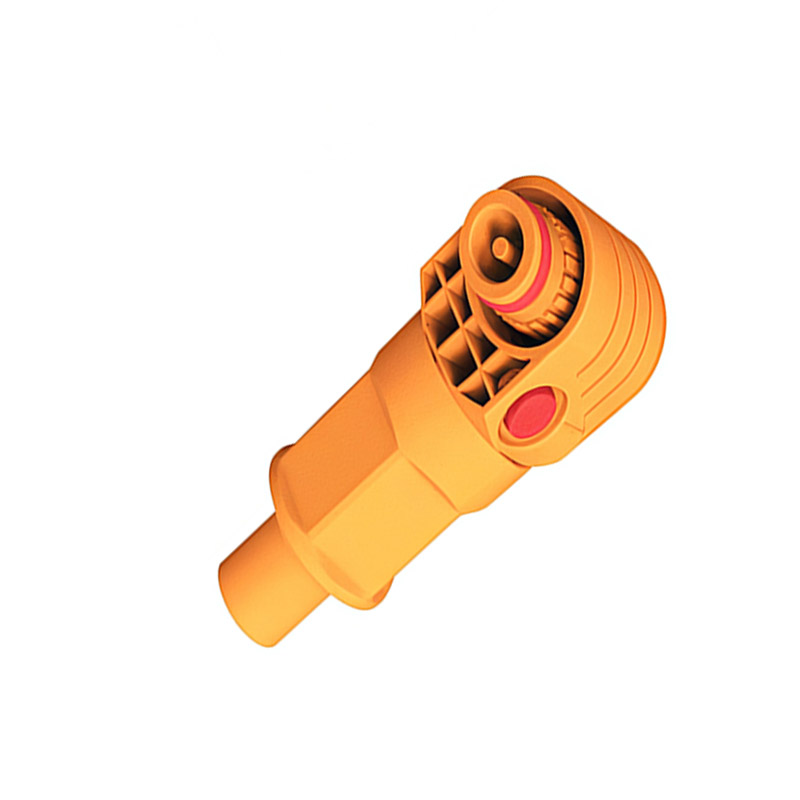

LY6155Energy storage high-voltage connector lithium battery home storage battery swap 60A/120A/200A/250A/300A/400A/500A

Plastic housing: PA66-GF, Flame retardant: UL94 V-0, Terminal material: Copper alloy, Silver-plated, Insertion/removal cycles: 500 times, Anti-misalignment: 2 key positions, Rated current: 60A for 10mm², 100A for 16mm², Rated voltage: DC 1500V, Insulation withstand voltage: AC 4000V, Insulation resistance: ≥500MΩ, Contact resistance: <0.5mΩ, Temperature rise: <50K, Operating temperature: -40°C to +125°C, Salt spray: 144 hours, General requirements: Secondary locking mechanism, Protection rating: IP2XB
