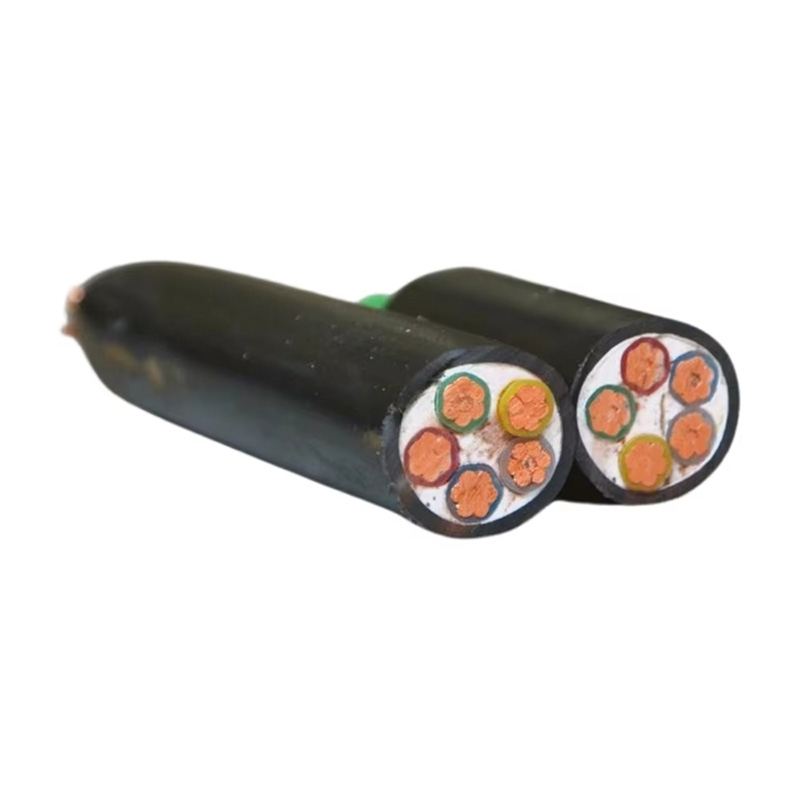

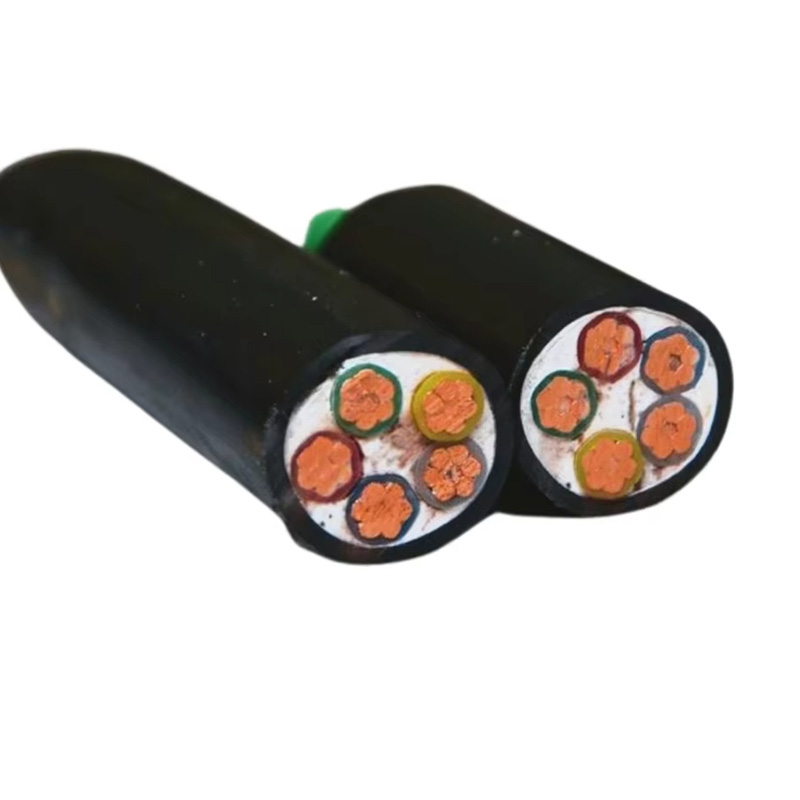

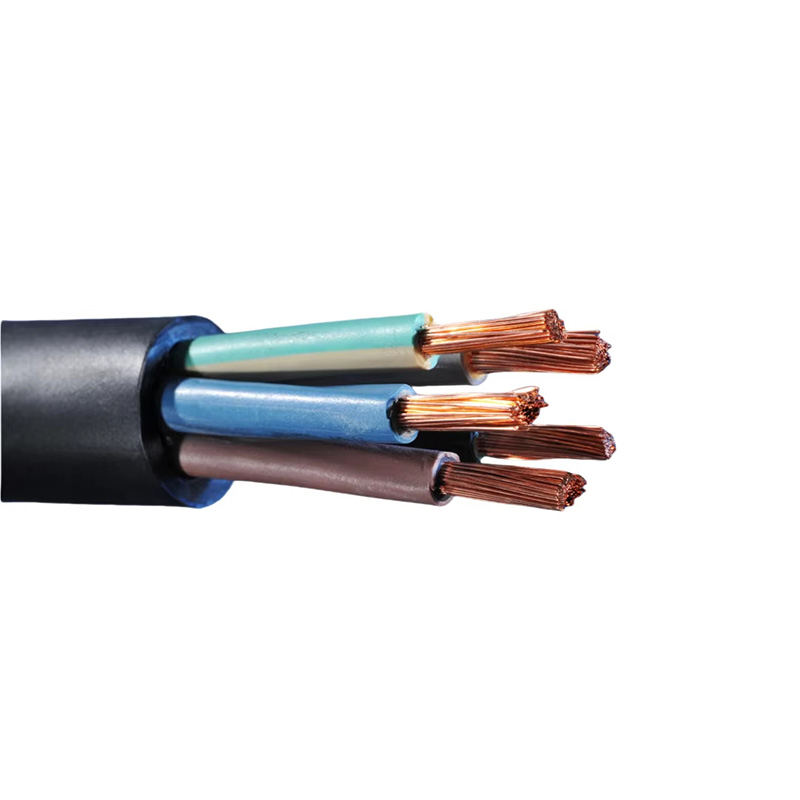

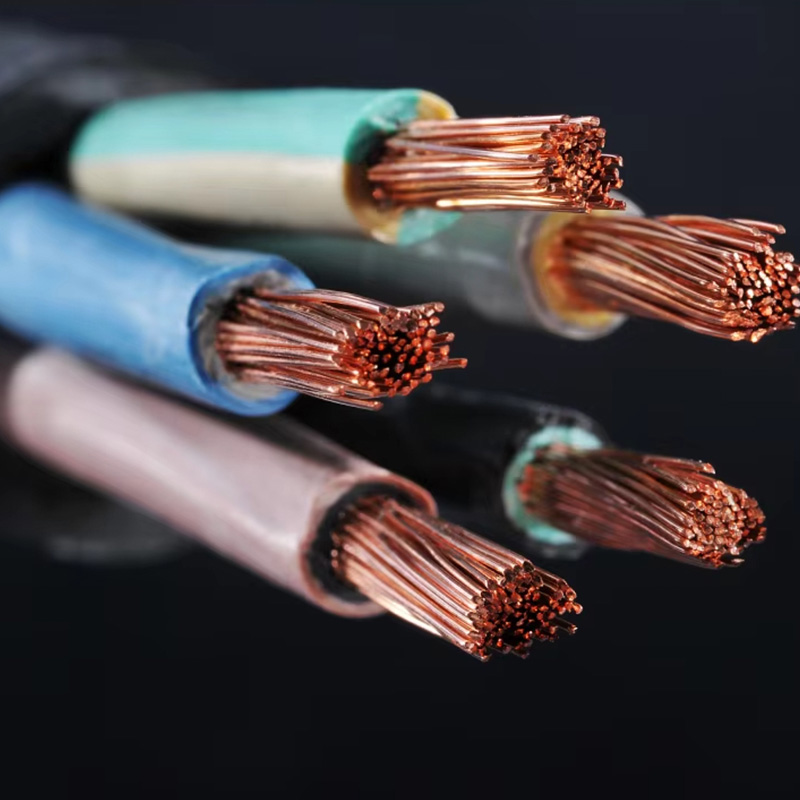

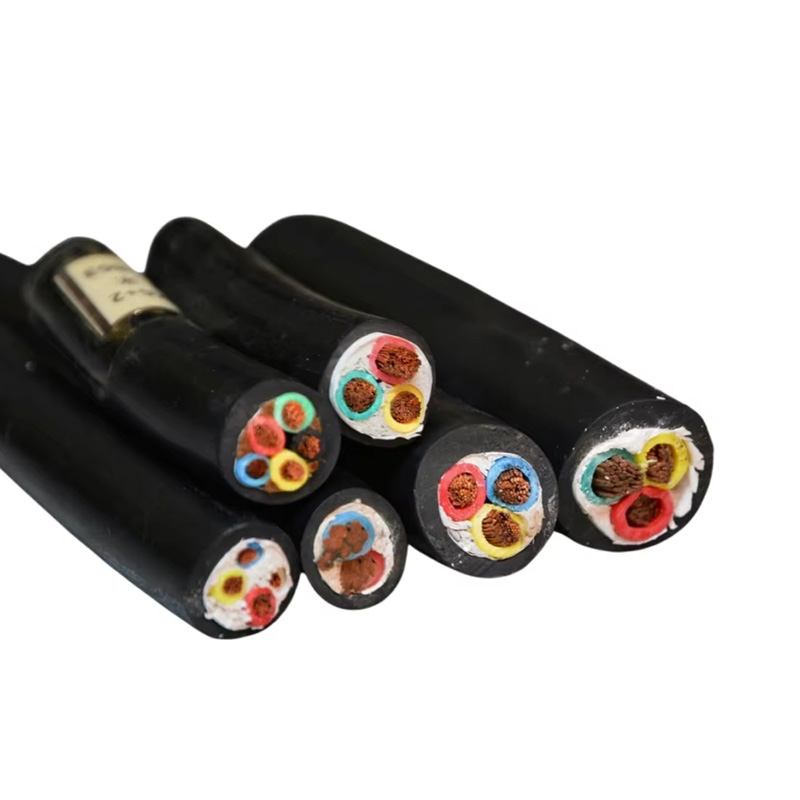

RJ7628 RVV Multi-Core 0.75mm-20mm H03VV-F 300/300V Copper Strand Conductor PVC Insulated House Wiring

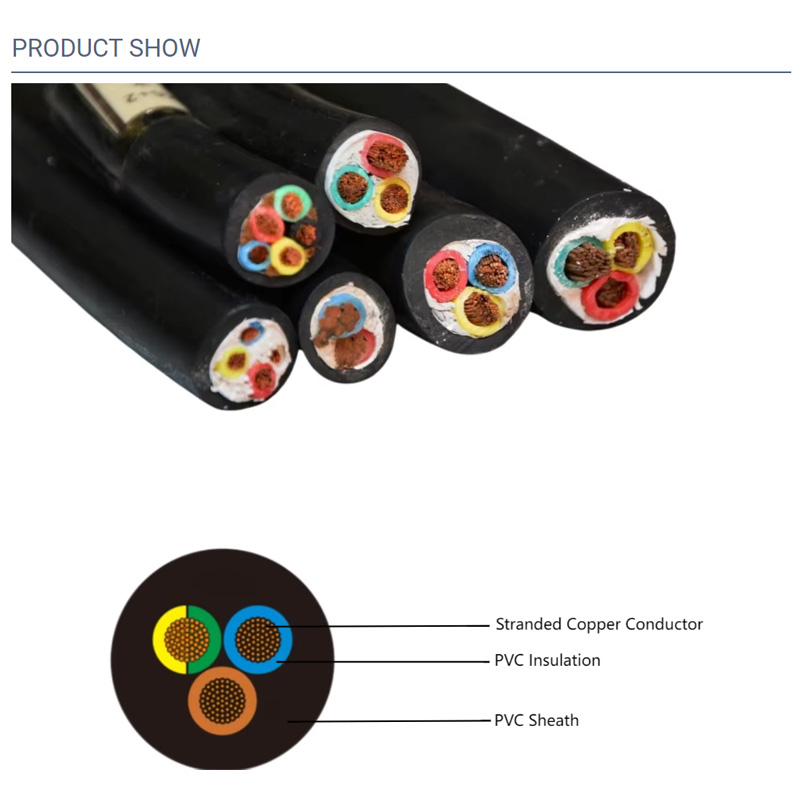

Designed for household and equipment use, offering flexibility and reliability. With a rated voltage of 300/300V and 300/500V, it is suitable for home wiring and appliances. The wire features a stranded copper conductor with PE and PVC insulation, ensuring durability. Available in sizes ranging from 1.5mm² to 16mm², it meets the GB/T5023-1997 standard. It is available in multiple colors including red, yellow, green, and blue.
Product Number：RJ7628
Application： Householding/Equipment
Conductor Material： Copper
Conductor Type： Stranded
Insulation Material ：PE, PVC
Rated voltage： 300/300V 300/500V
Type： insulated
Product name： Copper Core PVC Insulation Wire
Size： 1.5mm² 2.5mm² 4mm² 6mm² 10mm² 16mm²
Voltage ：300/500V 300/300V
Colors ：Red Yellow Green Blue
Temperature range： 0-70°C
Jacket： PE PVC
Usage： Building Wire Home Appliances
Standard： GB/T5023-1997
